# Bayesian confirmatory factor analysis and Bayesian network for high-dimensional phenotypic data
## GWAS Workshop <span class="citation">@VT</span>
### Haipeng Yu <br /><a href="https://haipengu.github.io/" class="uri">https://haipengu.github.io/</a> <br /> Gota Morota <br /> <a href="http://morotalab.org/" class="uri">http://morotalab.org/</a>
### 2019/6/26

---

# Motivation: High dimensional and diverse phenotypes
<img src="Pixelomics.png" height="400px" width="750px"/>

---
# How to handle a large number of phenotypes?
More and more phenotypes are being generated across time and space
<img src="bigPhe.png" height="130px" width="600px"/>

Challenges:
- high dimensional phenotypes
- diverse phenotypes
- how to make sense of these data and interpret
- multi-trait linear mixed model is computationally challenging

Objective:
- leverage Bayesian confirmatory factor analysis and Bayesian network to characterize a wide spectrum of rice phenotypes

---
# Bayesian confirmatory factor analysis
Assume observed phenotypes are derived from underlying latent variables

`\begin{align*}
    \mathbf{T} =  \mathbf{\Lambda} \mathbf{F} + \mathbf{s}
\end{align*}`

- `\(\mathbf{T}\)` is the `\(t \times n\)` matrix of observed phenotypes (413 accessions)

- `\(\mathbf{\Lambda}\)` is the `\(t \times q\)` factor loading matrix

- `\(\mathbf{F}\)` is the `\(q \times n\)` latent variables matrix

- `\(\mathbf{s}\)` is the `\(t \times n\)` matrix of specific effects.

Variance-covariance model:
`\begin{align*}
    var\mathbf{(T)} &= \mathbf{\Lambda}\mathbf{\Phi}\mathbf{\Lambda}' + \mathbf{\Psi},
\end{align*}`

- `\(\mathbf{\Phi}\)` is the variance of latent variables

- `\(\mathbf{\Psi}\)` is the variance of specific effects

---
# Prior distributions

`\begin{align*}
    var\mathbf{(T)} &= \mathbf{\Lambda}\mathbf{\Phi}\mathbf{\Lambda}' + \mathbf{\Psi},
\end{align*}`

- Factor loading matrix:
`\begin{align*}
& \mathbf{\Lambda} \sim \mathcal{N}(0, 0.01)
\end{align*}`

- Variance of latent variables:
`\begin{align*}
\mathbf{\Phi} \sim \mathcal{W}^{-1}(\mathbf{I}_{66}, 7)
\end{align*}`

- Variance of specific effects:
`\begin{align*}
\mathbf{\Psi} \sim \Gamma^{-1} (1, 0.5)
\end{align*}`
---
# Define 6 latent variables from 48 phenotypes

1. Grain Morphology (Grm, 11)
    - Seed length (Sl), Seed width (Sw), Seed volume (Sv), etc
2. Morphology (Mrp, 14)
    - Flag leaf length (Fll), Flag leaf width (Flw), etc
3. Flowering Time (Flt, 7)
    - Flowering time in Arkansas (Fla), Flowering time in Aberdeen (Flb), etc
4. Ionic components of salt stress (Iss, 6)
    - Na shoot (Nas), K shoot salt (Kss), etc
5. Yield (Yid, 5)
    - Panicle number per plant (Pnu),   Panicle length (Pal), etc
6. Morphological salt response (Msr, 5)
    - Shoot BM ratio (Sbr), Root BM ratio (Rbr), etc

---

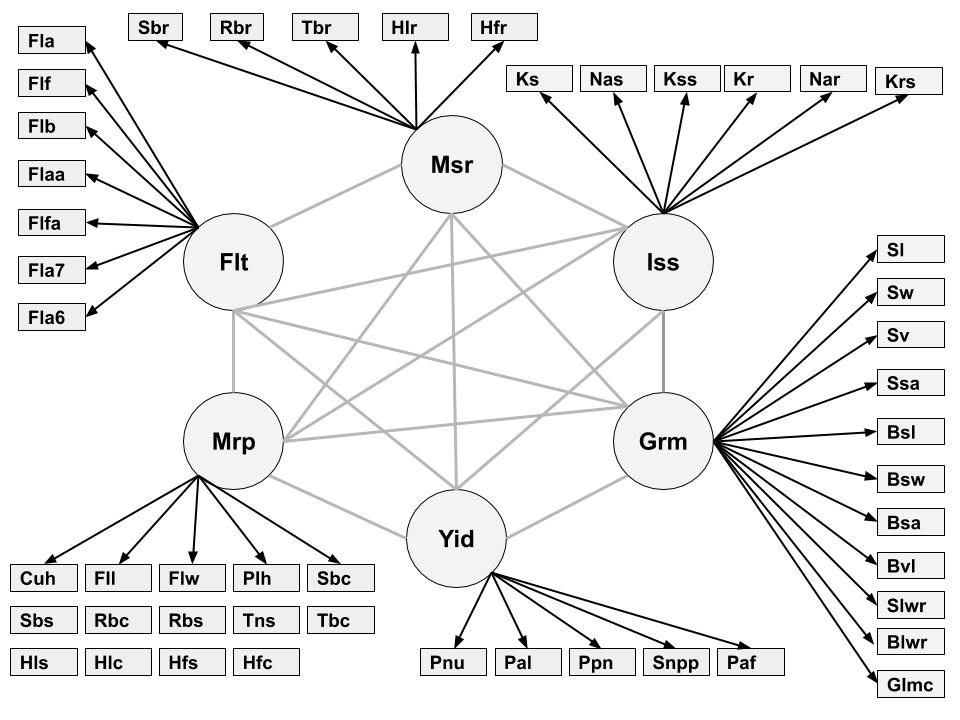

# Study the genetics of each latent variable
<img src="BCFA.jpg" height="530px" width="700px"/>

---
# Multivariate analysis
Bayesian genomic best linear unbiased prediction
    - separate genetic effects from noise (44K SNPs)

`\begin{align*}
    \mathbf{F} = \boldsymbol{\mu} + \mathbf{Xb} + \mathbf{Zu} + \boldsymbol{\epsilon}
\end{align*}`

- `\(\mathbf{F}\)` : Vector of factor scores
- `\(\mathbf{X}\)` : Incidence matrix for fixed effects
- `\(\mathbf{Z}\)` : Incidence matrix for additive genetic effects
- `\(\mathbf{b}\)`: Vector of fixed effects
- `\(\mathbf{u}\)`: Vector of additive genetic effects
- `\(\mathbf{e}\)`: Vector of residuals

---

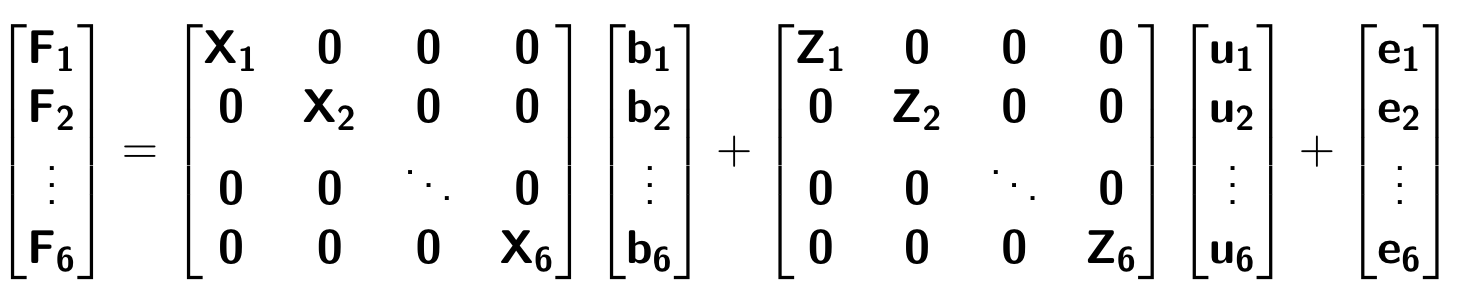

# Piror distributions
`\begin{align*}
    \mathbf{F} = \boldsymbol{\mu} + \mathbf{Xb} + \mathbf{Zu} + \boldsymbol{\epsilon}
\end{align*}`

<div align="center">
<img src="MTMvar.png" height="100px" width="500px"/>
</div>
- `\(\mathbf{\mu}\)`, `\(\mathbf{b}\)` were assigned a flat prior

- `\(\boldsymbol{\Sigma_{u}}\)`, `\(\boldsymbol{\Sigma_{e}}\)` are variance-covariance matrix between latent variables

`\begin{align*}
\boldsymbol{\Sigma_{u}}, \boldsymbol{\Sigma_{e}} \sim \mathcal{W}^{-1}(\mathbf{I}_{66}, 6)
\end{align*}`

---
# Bayesian Network
Probabilistic directed acyclic graphical model (DAG)
    - interrelationships (Edges) among latent variables (Nodes)
    - genetic selection for breeding requires causal assumptions

<div align="center">
<img src="BCFA2.png" height="256px" width="400px"/>
</div>
---

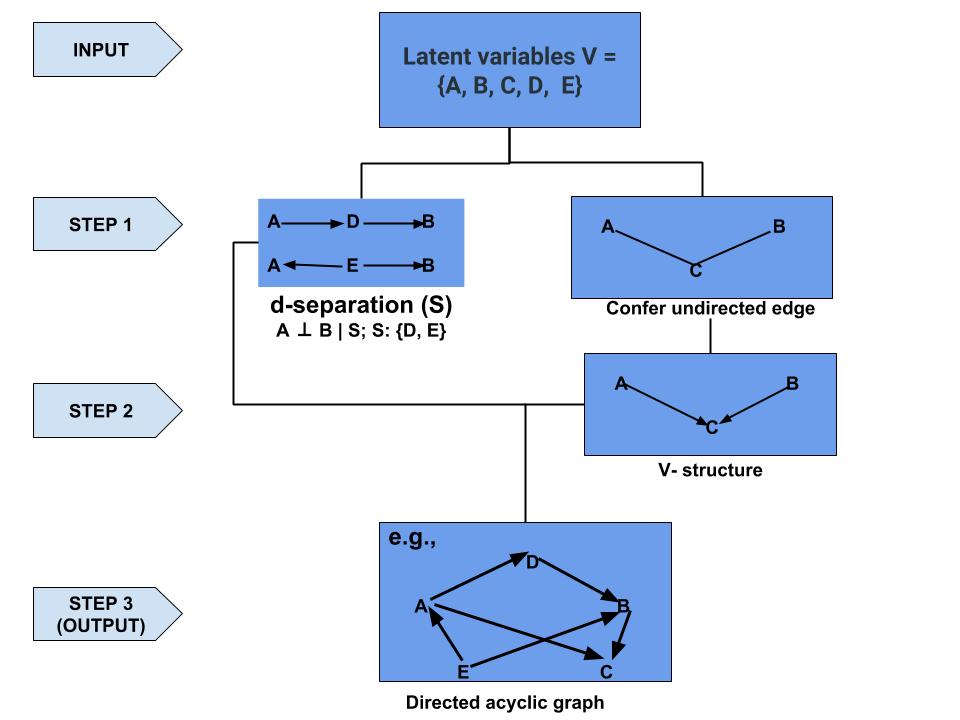

# Constraint-based learning
<img src="Fig3.jpg" height="500px" width="700px"/>

---

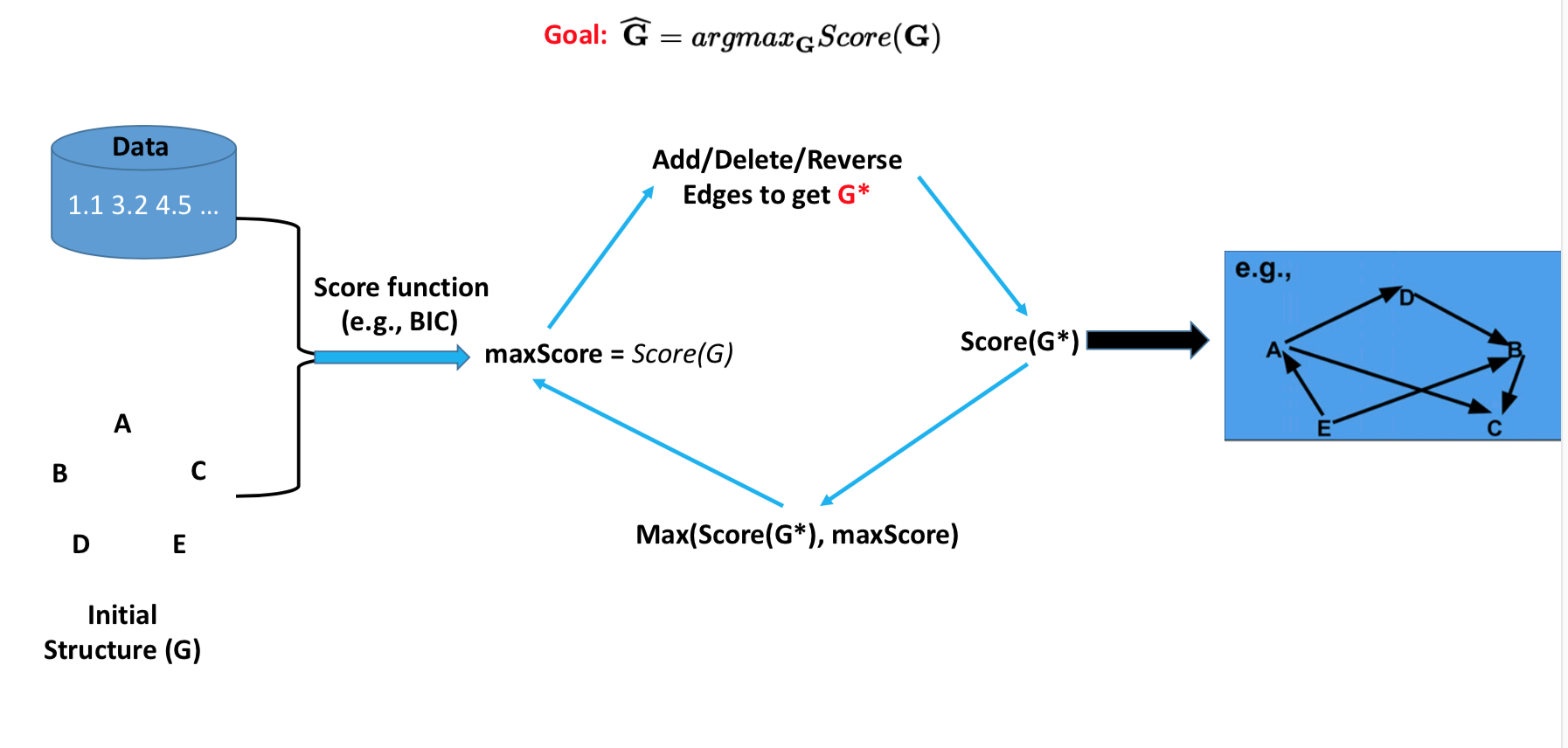

# Score-based learning
<img src="Score_based_algorithm.png" height="500px" width="700px"/>

---
# Examples of algorithms
- Score-based algorithm
  - Hill climbing
  - Tabu search

- Hybrid algorithm
  - Max-Min Hill Climbing algorithm
  - General 2-Phase Restricted Maximization algorithm
---

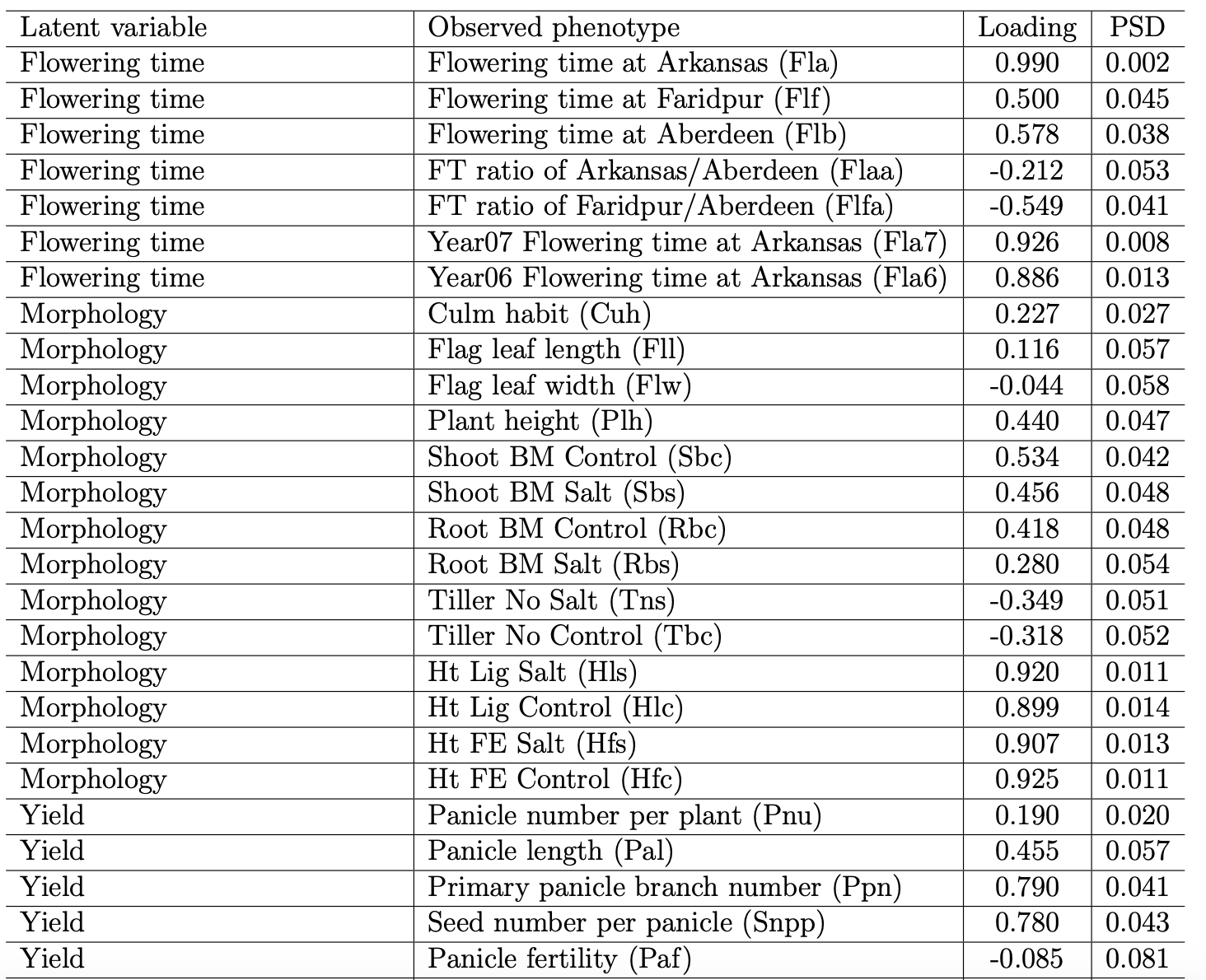

# Standardized factor loadings
<div align="center">
<img src="load2.png" height="506px" width="500px"/>
</div>
---

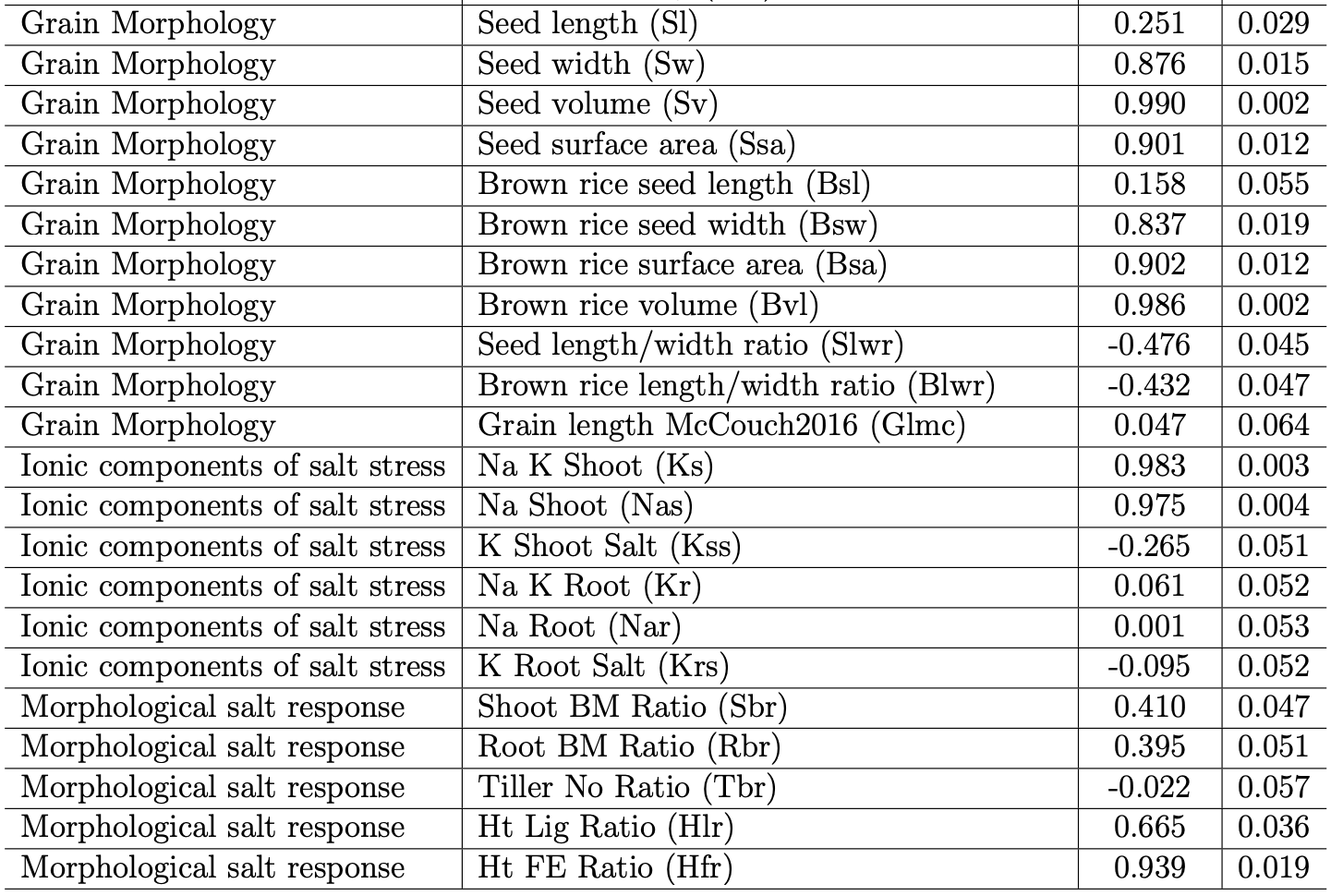

# Standardized factor loadings
<div align="center">
<img src="load3.png" height="466px" width="500px"/>
</div>

---

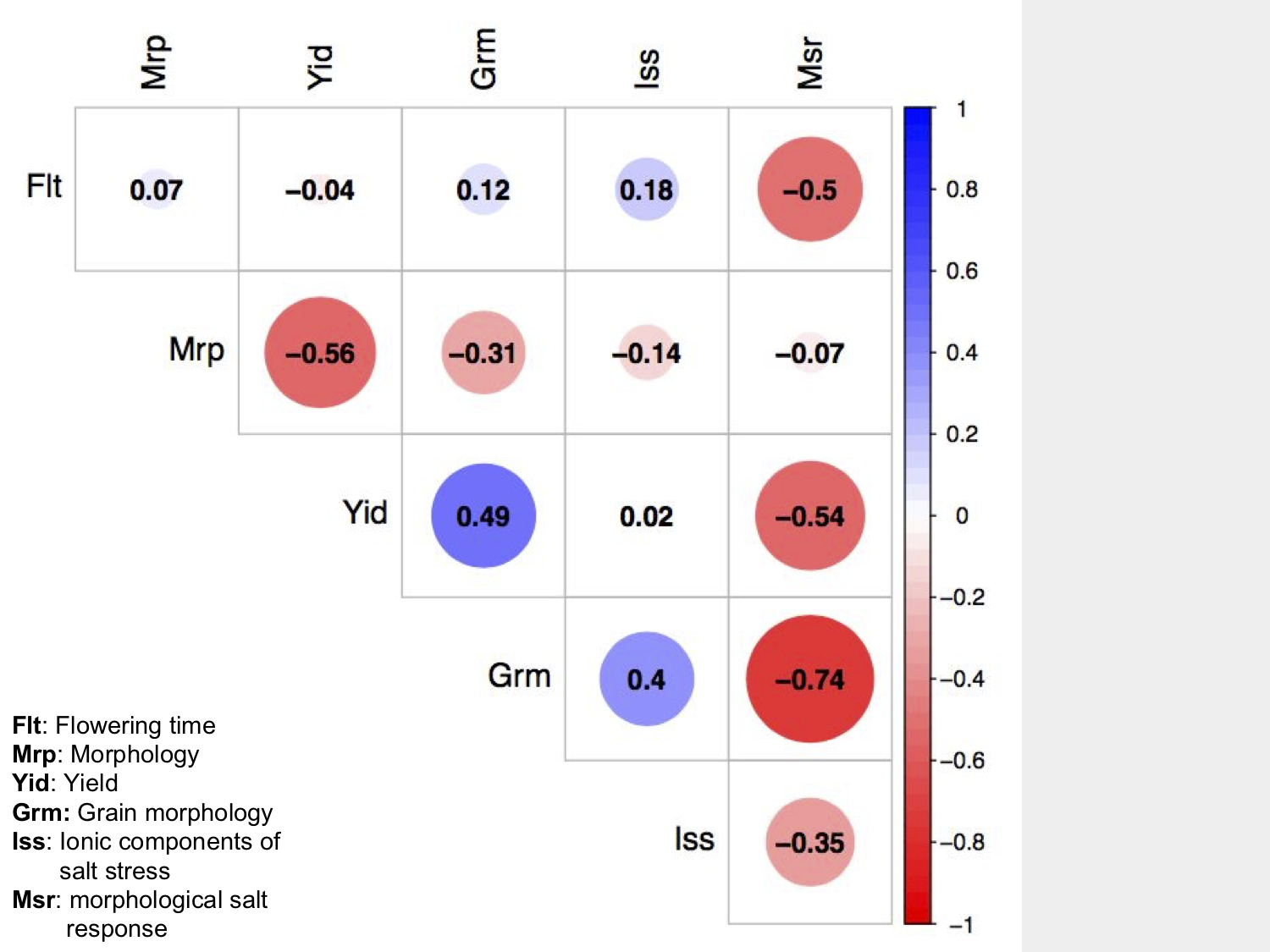

# Genetic correlations among latent variable
<div align="center">
<img src="Cor_plot_for_presentation.png" height="530px" width="700px"/>
</div>
---

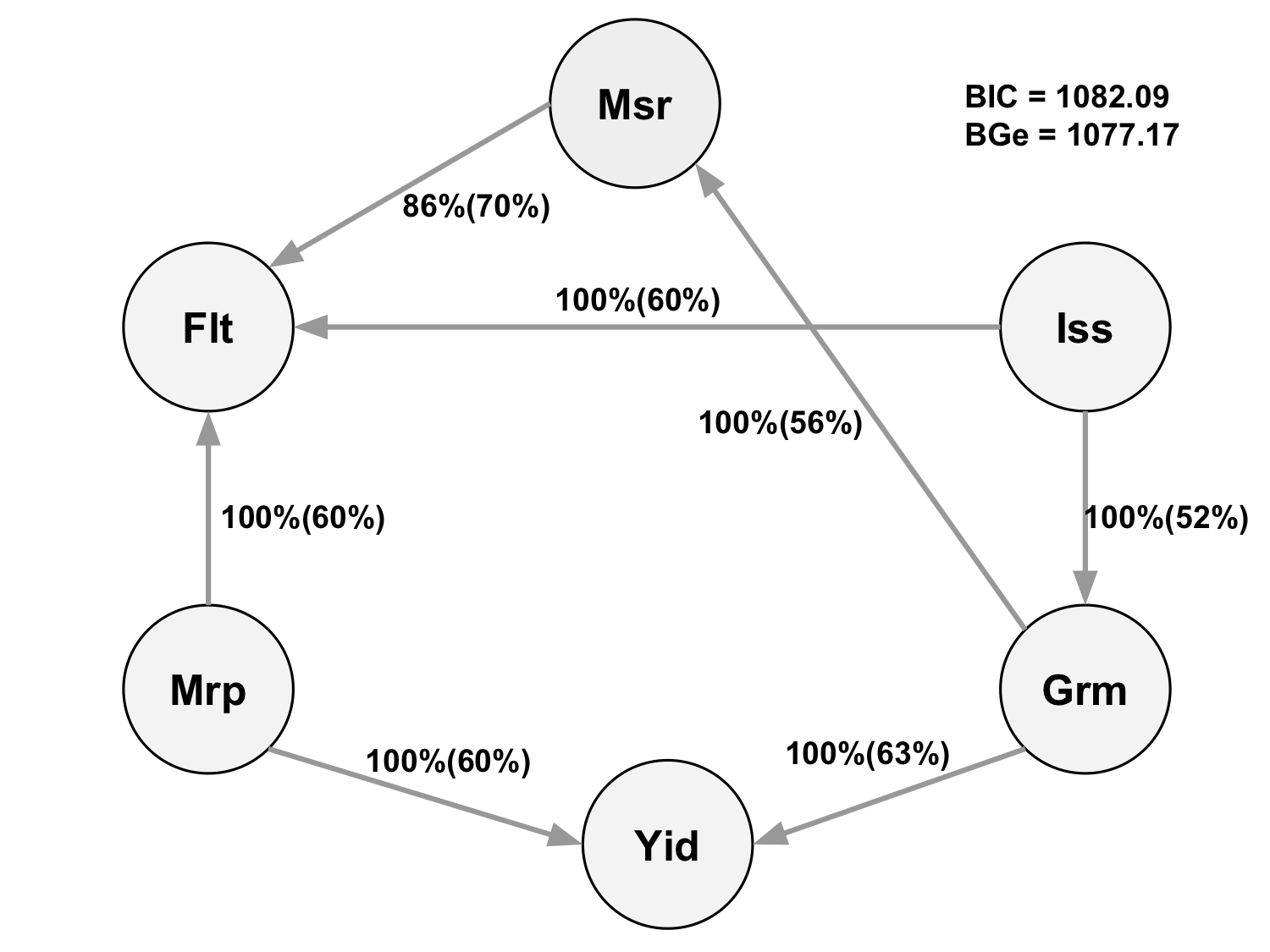

# Hill Climbing algorithm
<img src="BN_HC.png" height="530px" width="700px"/>

---

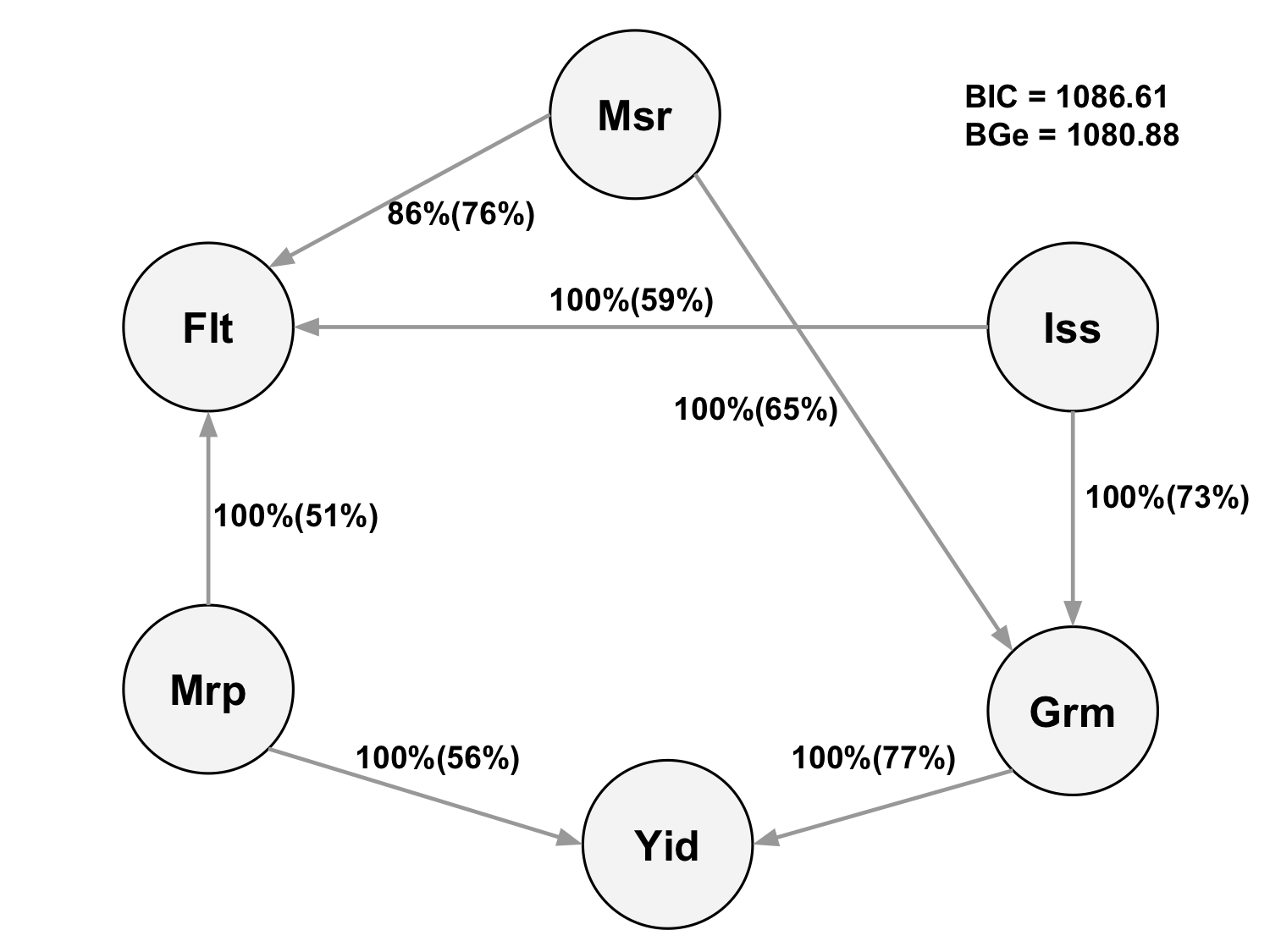

# Tabu algorithm
<img src="BN_TABU.png" height="530px" width="700px"/>

---

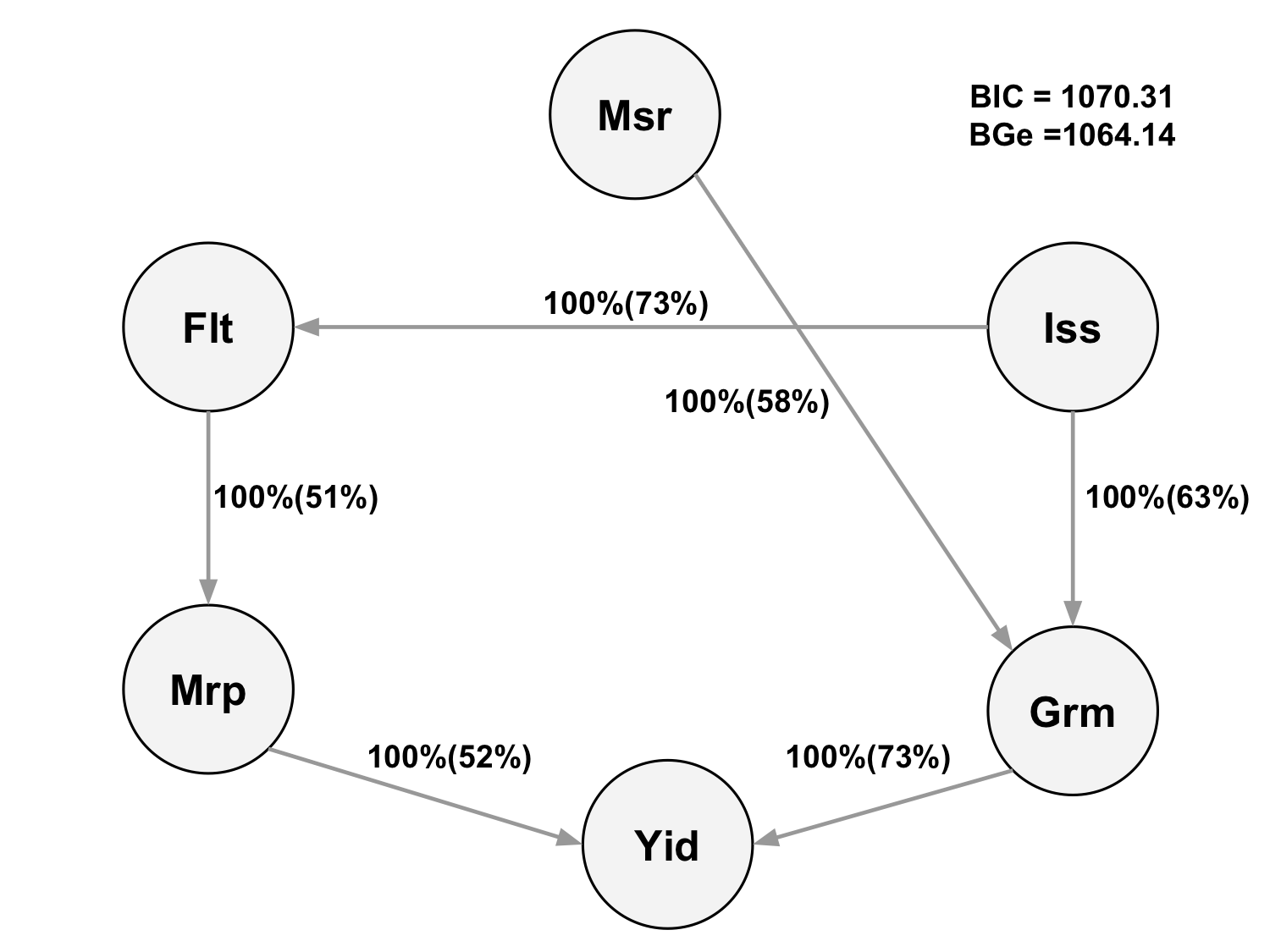

# Max-Min Hill Climbing algorithm
<img src="BN_MMHC.png" height="530px" width="700px"/>

---

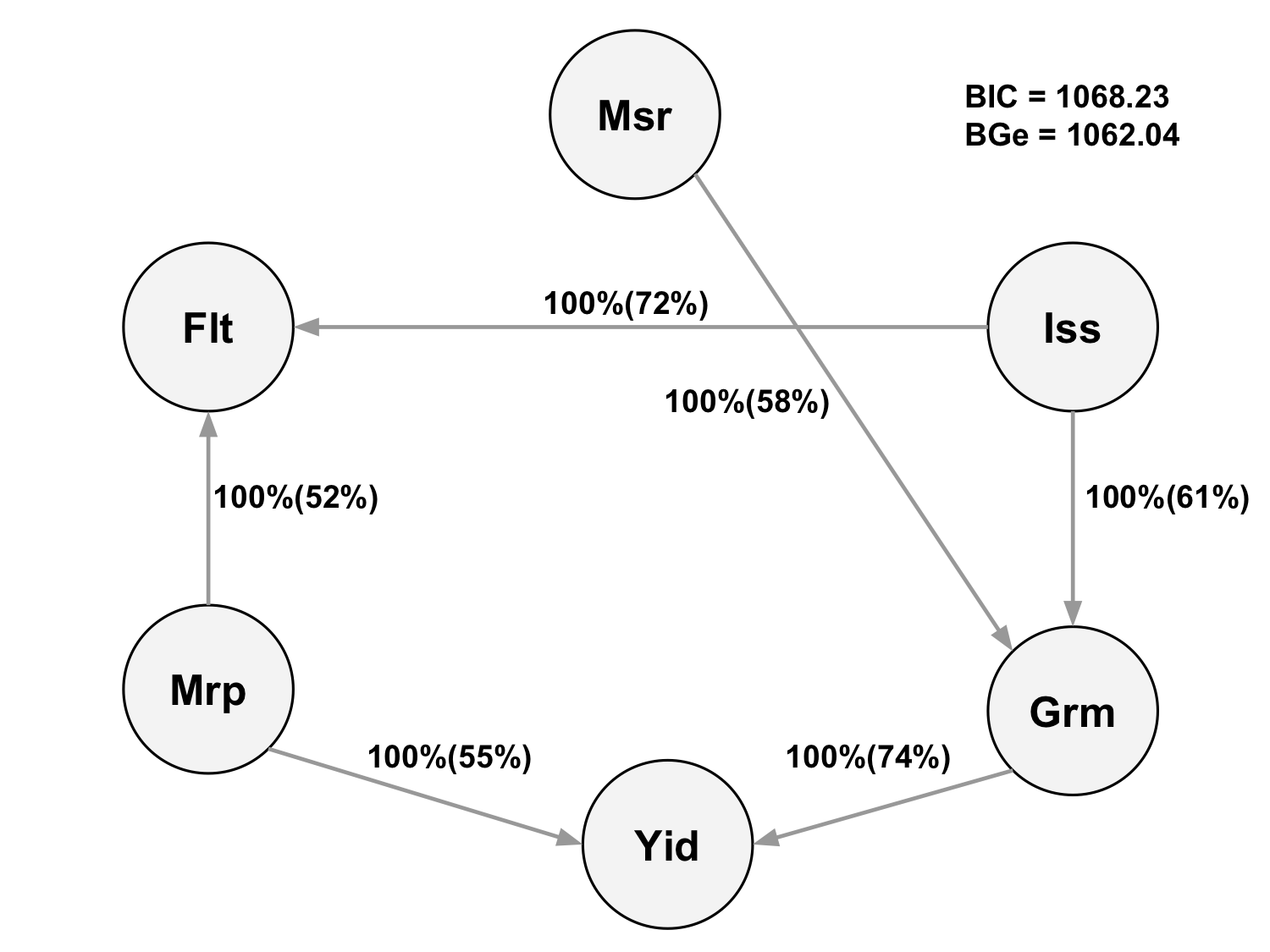

# General 2-Phase Restricted Maximization algorithm
<img src="BN_RSMAX2.png" height="460px" width="650px"/>

---

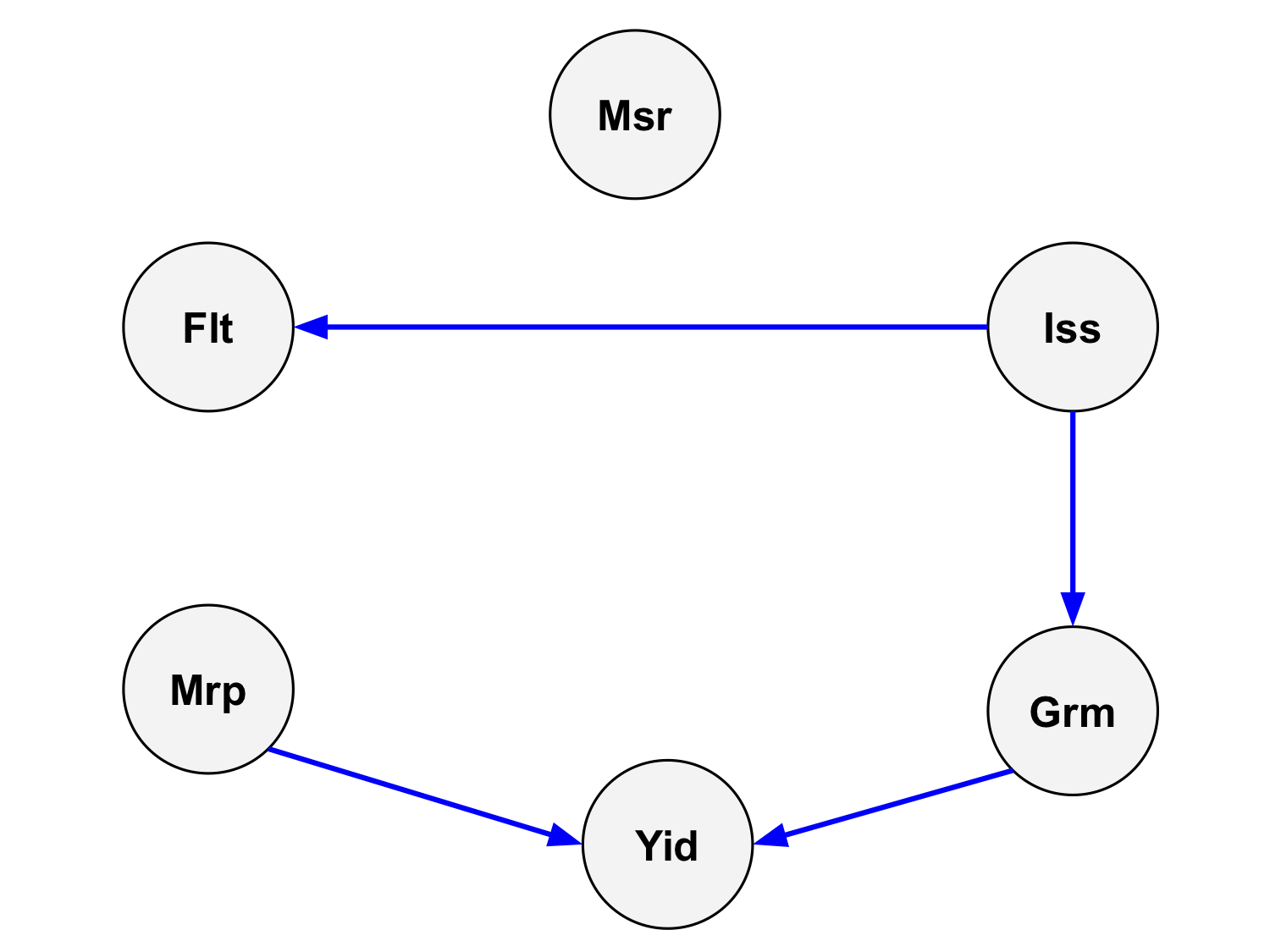

# Consensus Bayesian network
<img src="BN_consensus.png" height="460px" width="650px"/>

---
# FA vs. PCA

- What is the main difference between principal component analysis (PCA) and factor analysis (FA)?

- Confirmatory factor analysis (CFA) vs. Explanatory factor analysis (EFA)

---

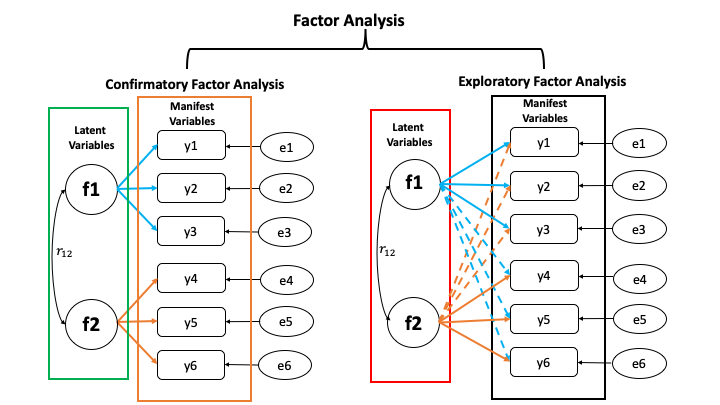

# CFA vs. EFA
<div align="center">
<img src="EFA_CFA.png" height="470px" width="750px"/>
</div>

---
# Summary

- Bayesian cofirmatory factor analysis allows to work at the
level of latent variables

- Bayesian network can be applied to predict the potential influence of external interventions or selection associated with target traits

- Provide greater insights than pairwise-association measures of multiple phenotypes

- It is possible to dissect genetic signals from high-dimensional phenotypes if we focus on underlying patterns in big data

---
# Useful links
<div align="center">
<img src="G3paper.png" height="300px" width="600px"/>
</div>

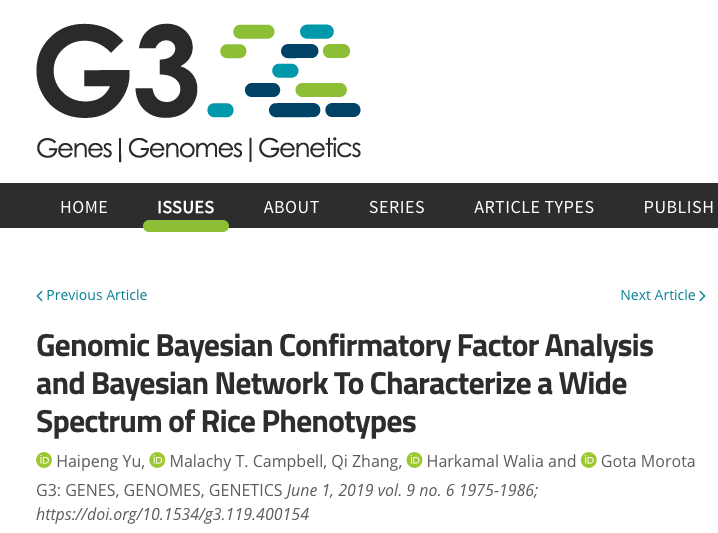

- Genomic Bayesian confirmatory factor analysis and Bayesian network to characterize a wide spectrum of rice phenotypes (https://www.g3journal.org/content/9/6/1975)

- An illustrative example of Bayesian Network (https://haipengu.github.io/Rmd/GBN.html)
